1. Primary Mode

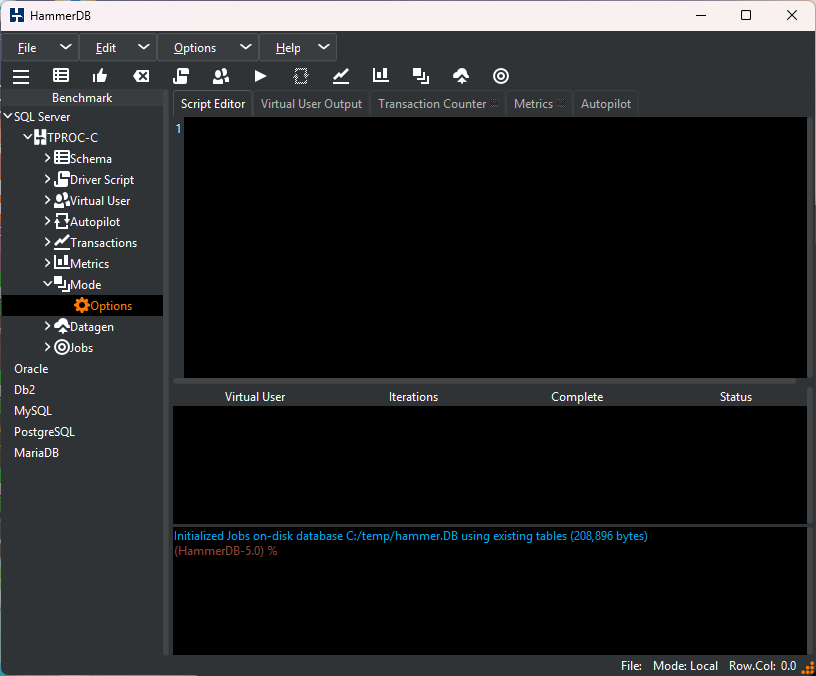

From the tree-view select Mode Options.

Figure 8.2. Mode Options

Mode Options

This displays the Mode Options as shown in Figure 3 confirming that the current mode is Local.

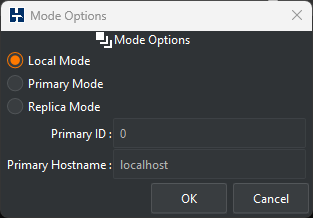

Figure 8.3. Mode Options Select

Mode Options Select

Select Primary Mode and click OK.

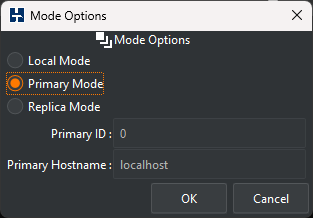

Figure 8.4. Primary Mode Select

Primary Mode Select

Confirm the selection.

Figure 8.5. Mode Confirmation

Mode Confirmation

This will show that Master Mode is now active and the ID and hostname it is running on.

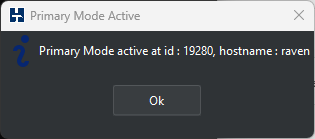

Figure 8.6. Mode Active

Mode Active


Note that this will also be recorded in the console display and the current Mode displayed in the status bar at the bottom right of the Window.

Setting Primary Mode at id : 18808, hostname : osprey
