4. Creating the Schema

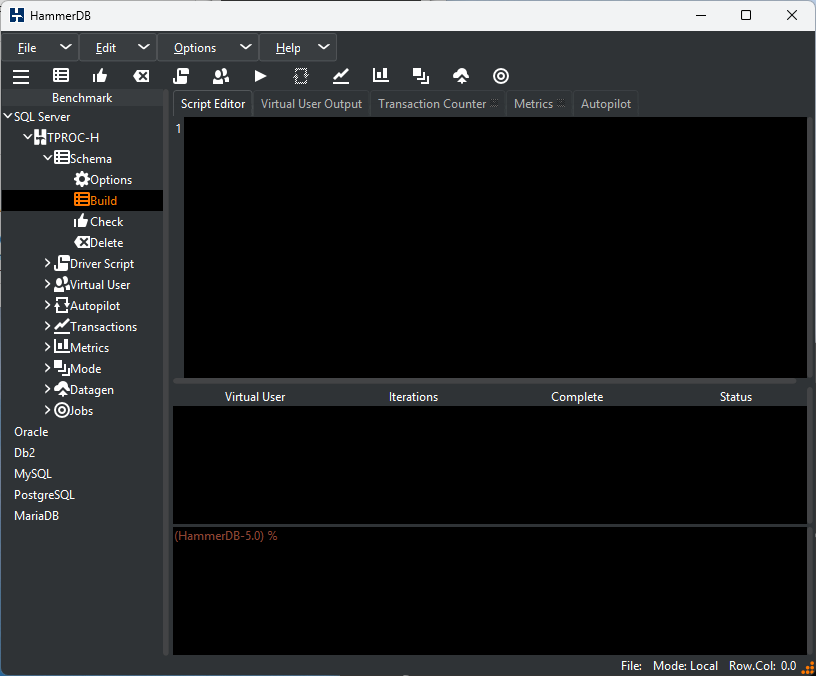

To begin the schema creation select the Build Option from the tree-view.

Figure 12.10. Build TPROC-H Schema

Build TPROC-H Schema

A dialog box is shown to confirm the options selected.

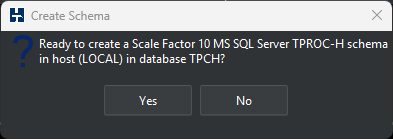

Figure 12.11. Create Schema

Create Schema

When you click Yes HammerDB will login to your chosen service name with a monitor thread as the system user and create the user with the password you have chosen. It will then log out and log in again as your chosen user, create the tables and then load the region and nation table data before waiting and monitoring the other threads. The worker threads will wait for the monitor thread to complete its initial work. Subsequently the worker threads will create and insert the data for their assigned warehouses. There are no intermediate data files or manual builds required, HammerDB will both create and load your requested data dynamically. Data is inserted in a batch format for optimal performance, however for larger schemas doing a bulk load of data created with the datagen feature will be a faster way to create the schema as it bypasses the logging and consistency checks of the insert based load.

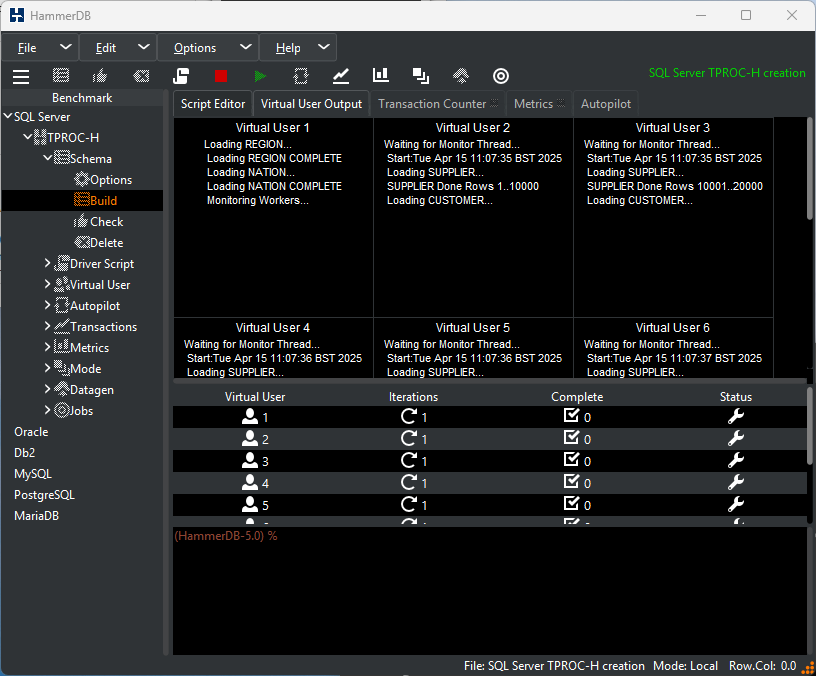

Figure 12.12. Schema Build Start

Schema Build Start

When the workers are complete the monitor thread will create the indexes and gather the statistics. When complete Virtual User 1 will display the message TPCH SCHEMA COMPLETE and all virtual users will show that they completed their action successfully. Pressing the red button will destroy the Virtual Users.

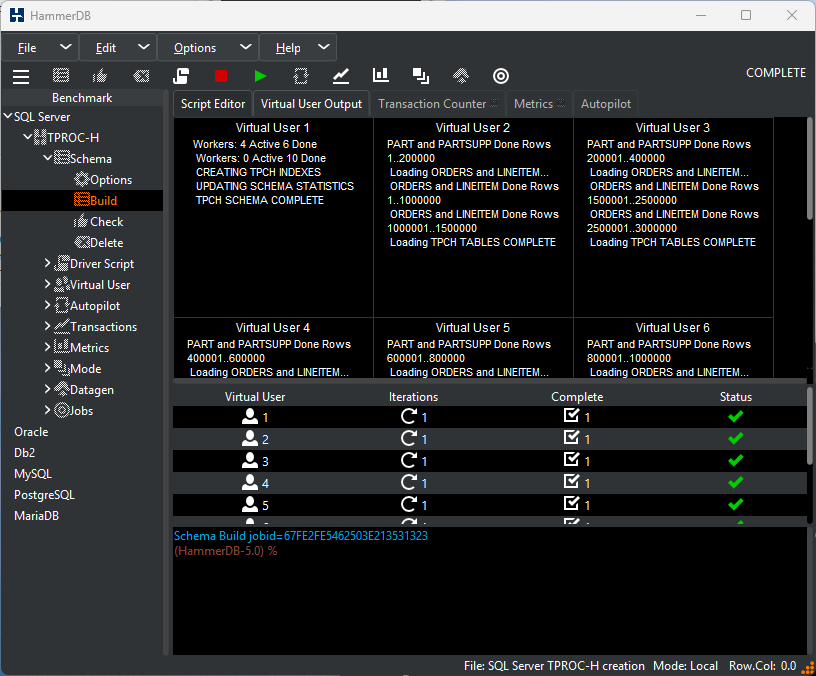

Figure 12.13. Schema Build Complete

Schema Build Complete

4.1. Verifying and Backing-Up the Oracle Schema

The schema build is now complete with the following tables created and populated. Note that in example below the tables have inherited the tablespaces’s in-memory configuration without additional settings. If required the inmemory_priority can also be set at this point in time.

  1* select table_name, num_rows, inmemory, inmemory_priority from user_tables
SQL> /

TABLE_NAME                       NUM_ROWS INMEMORY INMEMORY_PRIORITY
------------------------------ ---------- -------- -----------------
ORDERS                            1500000 ENABLED  NONE
PARTSUPP                           800000 ENABLED  NONE
CUSTOMER                           150000 ENABLED  NONE
PART                               200000 ENABLED  NONE
SUPPLIER                            10000 ENABLED  NONE
NATION                                 25 ENABLED  NONE
REGION5                                 5 ENABLED  NONE
LINEITEM                          6003632 ENABLED  NONE

You can verify the contents with SQL*PLUS as the newly created user.

SQL> select tname, tabtype from tab;

TNAME                          TABTYPE
------------------------------ -------
CUSTOMER                       TABLE
LINEITEM                       TABLE
NATION                         TABLE
ORDERS                         TABLE
PART                           TABLE
PARTSUPP                       TABLE
REGION                         TABLE
SUPPLIER                       TABLE

8 rows selected.

SQL> select * from customer where rownum = 1;

 C_CUSTKEY C_MKTSEGME C_NATIONKEY C_NAME
---------- ---------- ----------- -------------------------
C_ADDRESS C_PHONE  C_ACCTBAL
---------------------------------------- --------------- ----------
C_COMMENT
--------------------------------------------------------------------------------
    112098 AUTOMOBILE       22 Customer#000112098
v,QXkbT8YhhyQYXjX4Ag3iFPQq0gbfZNo7 776-160-1375    5010.19
carefully pending instructions detect slyly-- pending deposits acco

SQL> select index_name, index_type from ind;

INDEX_NAME       INDEX_TYPE
------------------------------
REGION_PK        NORMAL
NATION_PK        NORMAL
SUPPLIER_PK      NORMAL
PARTSUPP_PK      NORMAL
PART_PK          NORMAL
ORDERS_PK        NORMAL
LINEITEM_PK      NORMAL
CUSTOMER_PK      NORMAL

8 rows selected.

At this point the data creation is complete and you are ready to start running a performance test. Before doing so note that as this is a query based workload you have the potential to run multiple tests and it will return the same results as the data is not modified during tests, however there is one exception, under the Driver Options the option to choose a Refresh Function. Further details will be given on the refresh function in the next section however at this point it is sufficient to note that the refresh function when enabled will modify data and no two same refresh functions can be run on the same data set. This means if you choose to include a refresh function and then attempt to re-run the test you will receive an error as the data has been modified. This means you have a number of options. Firstly (and recommended) you can use datapump to backup and restore your schema. To do this create a directory as follows to reference a file system folder you have already created (or use the pre-existing DATA_PUMP_DIR)

SQL> create directory dump_dir1 as '/u02/app/oracle/dumpdir';

Directory created.

Then use datapump to export your schema to this directory before you have run any workloads with a refresh function:
[oracle@MERLIN oracle]$ expdp \"sys/oracle@pdb1 as sysdba\" schemas=tpch content=all directory=DUMP_DIR1 logfile=dp.log

Export: Release 12.1.0.2.0 - Production on Wed Sep 17 11:23:32 2014

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

Connected to: Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
Starting "SYS"."SYS_EXPORT_SCHEMA_01":  "sys/********@pdb1 AS SYSDBA" schemas=tpch content=all directory=DUMP_DIR1 logfile=dp.log
Estimate in progress using BLOCKS method...
Processing object type SCHEMA_EXPORT/TABLE/TABLE_DATA
Total estimation using BLOCKS method: 1.159 GB
Processing object type SCHEMA_EXPORT/USER
Processing object type SCHEMA_EXPORT/SYSTEM_GRANT
Processing object type SCHEMA_EXPORT/ROLE_GRANT
Processing object type SCHEMA_EXPORT/DEFAULT_ROLE
Processing object type SCHEMA_EXPORT/TABLESPACE_QUOTA
Processing object type SCHEMA_EXPORT/PRE_SCHEMA/PROCACT_SCHEMA
Processing object type SCHEMA_EXPORT/TABLE/TABLE
Processing object type SCHEMA_EXPORT/TABLE/INDEX/INDEX
Processing object type SCHEMA_EXPORT/TABLE/CONSTRAINT/CONSTRAINT
Processing object type SCHEMA_EXPORT/TABLE/INDEX/STATISTICS/INDEX_STATISTICS
Processing object type SCHEMA_EXPORT/TABLE/CONSTRAINT/REF_CONSTRAINT
Processing object type SCHEMA_EXPORT/TABLE/STATISTICS/TABLE_STATISTICS
Processing object type SCHEMA_EXPORT/STATISTICS/MARKER
. . exported "TPCH"."LINEITEM"                           746.2 MB 6003632 rows
. . exported "TPCH"."ORDERS"                             165.4 MB 1500000 rows
. . exported "TPCH"."PARTSUPP"                           112.7 MB  800000 rows
. . exported "TPCH"."PART"                               25.99 MB  200000 rows
. . exported "TPCH"."CUSTOMER"                           23.45 MB  150000 rows
. . exported "TPCH"."SUPPLIER"                           1.430 MB   10000 rows
. . exported "TPCH"."NATION"                             9.125 KB      25 rows
. . exported "TPCH"."REGION"                             6.476 KB       5 rows
Master table "SYS"."SYS_EXPORT_SCHEMA_01" successfully loaded/unloaded
******************************************************************************
Dump file set for SYS.SYS_EXPORT_SCHEMA_01 is:
  /u02/app/oracle/dumpdir/expdat.dmp
Job "SYS"."SYS_EXPORT_SCHEMA_01" successfully completed at Wed Sep 17 11:24:10 2014 elapsed 0 00:00:36

After you have run a workload with a refresh function drop the TPROC-H user as follows:

SQL> drop user tpch cascade;

User dropped.

Then re-import the export file you took prior to running the refresh function:

[oracle@MERLIN oracle]$ impdp \"sys/oracle@pdb1 as sysdba\" schemas=tpch content=all directory=DUMP_DIR1 logfile=dp1.log

Import: Release 12.1.0.2.0 - Production on Wed Sep 17 11:37:54 2014

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

Connected to: Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options
Master table "SYS"."SYS_IMPORT_SCHEMA_04" successfully loaded/unloaded
Starting "SYS"."SYS_IMPORT_SCHEMA_04":  "sys/********@pdb1 AS SYSDBA" schemas=tpch content=all directory=DUMP_DIR1 logfile=dp1.log
Processing object type SCHEMA_EXPORT/USER
Processing object type SCHEMA_EXPORT/SYSTEM_GRANT
Processing object type SCHEMA_EXPORT/ROLE_GRANT
Processing object type SCHEMA_EXPORT/DEFAULT_ROLE
Processing object type SCHEMA_EXPORT/TABLESPACE_QUOTA
Processing object type SCHEMA_EXPORT/PRE_SCHEMA/PROCACT_SCHEMA
Processing object type SCHEMA_EXPORT/TABLE/TABLE
Processing object type SCHEMA_EXPORT/TABLE/TABLE_DATA
. . imported "TPCH"."LINEITEM"                           746.2 MB 6003632 rows
. . imported "TPCH"."ORDERS"                             165.4 MB 1500000 rows
. . imported "TPCH"."PARTSUPP"                           112.7 MB  800000 rows
. . imported "TPCH"."PART"                               25.99 MB  200000 rows
. . imported "TPCH"."CUSTOMER"                           23.45 MB  150000 rows
. . imported "TPCH"."SUPPLIER"                           1.430 MB   10000 rows
. . imported "TPCH"."NATION"                             9.125 KB      25 rows
. . imported "TPCH"."REGION"                             6.476 KB       5 rows
Processing object type SCHEMA_EXPORT/TABLE/INDEX/INDEX
Processing object type SCHEMA_EXPORT/TABLE/CONSTRAINT/CONSTRAINT
Processing object type SCHEMA_EXPORT/TABLE/INDEX/STATISTICS/INDEX_STATISTICS
Processing object type SCHEMA_EXPORT/TABLE/CONSTRAINT/REF_CONSTRAINT
Processing object type SCHEMA_EXPORT/TABLE/STATISTICS/TABLE_STATISTICS
Processing object type SCHEMA_EXPORT/STATISTICS/MARKER
Job "SYS"."SYS_IMPORT_SCHEMA_04" successfully completed at Wed Sep 17 11:38:40 2014 elapsed 0 00:00:44

You only need to export once and can then re-import as many times as you wish to run the successfully refresh function.

Secondly another option you have is to use dbms_metadata to capture the table definitions and then use SQL*Loader to export and import the data using the datagen created data. Finally if you have the flashback table feature enabled you can note the time that you start running a test with a refresh function and then flashback the LINEITEM and ORDERS table to their previous state before the test, for example:

flashback table lineitem to timestamp TO_TIMESTAMP('17-SEP-14 11.41.00.00 AM')

Whichever method you use, ensure that if you wish to run the refresh function you are prepared to restore your schema to the previous state before running subsequent tests.

4.2. Verifying and Backing Up the SQL Server Schema

Once created you can verify the schema with SSMS or sqlcmd.

C:\Users>sqlcmd -S (local)\SQLDEVELOP -E -Q "use tpch; select name from sys.tables"
Changed database context to 'tpch'.
name

--------------------------------------------------------------------------------
customer
lineitem
nation
part
partsupp
region
supplier
orders

(8 rows affected)

At this point the data creation is complete and you are ready to start running a performance test. Before doing so note that as this is a query based workload you have the potential to run multiple tests and it will return the same results as the data is not modified during tests, however there is one exception, under the Driver Options the option to choose a Refresh Function. Further details will be given on the refresh function in the next section however at this point it is sufficient to note that the refresh function when enabled will modify data and no two same refresh functions can be run on the same data set. This means if you choose to include a refresh function and then attempt to re-run the test you will receive an error as the data has been modified. Therefore you should backup your schema before running a workload.

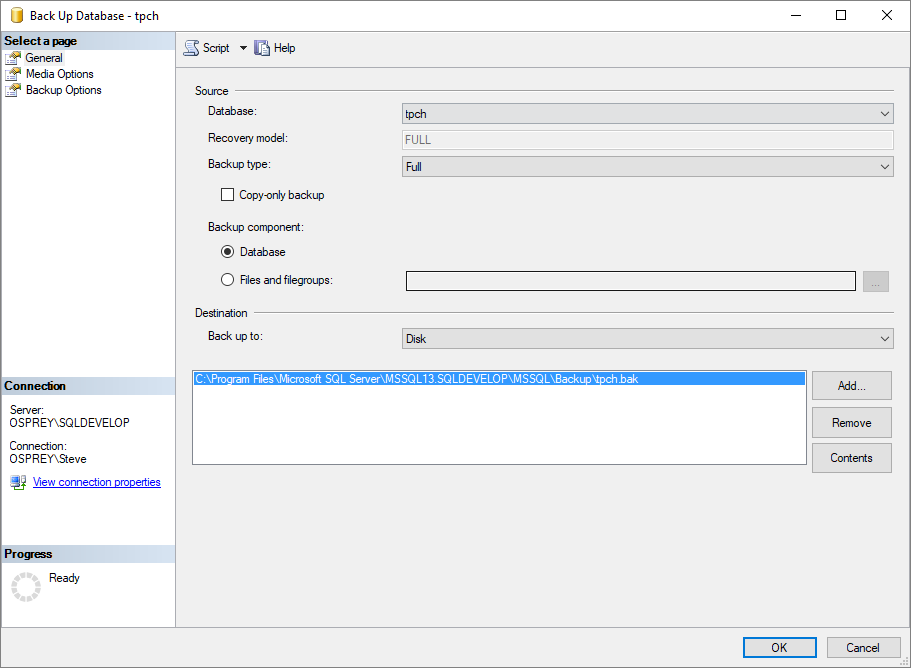

Figure 12.14. Backup SQL Server

Backup SQL Server

SQL Server will notify when the backup is successful.

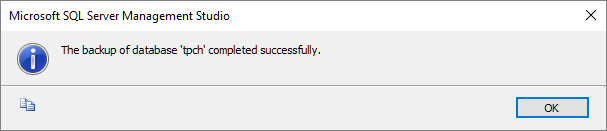

Figure 12.15. Backup successful

Backup successful

The restore can also be selected from the tasks option.

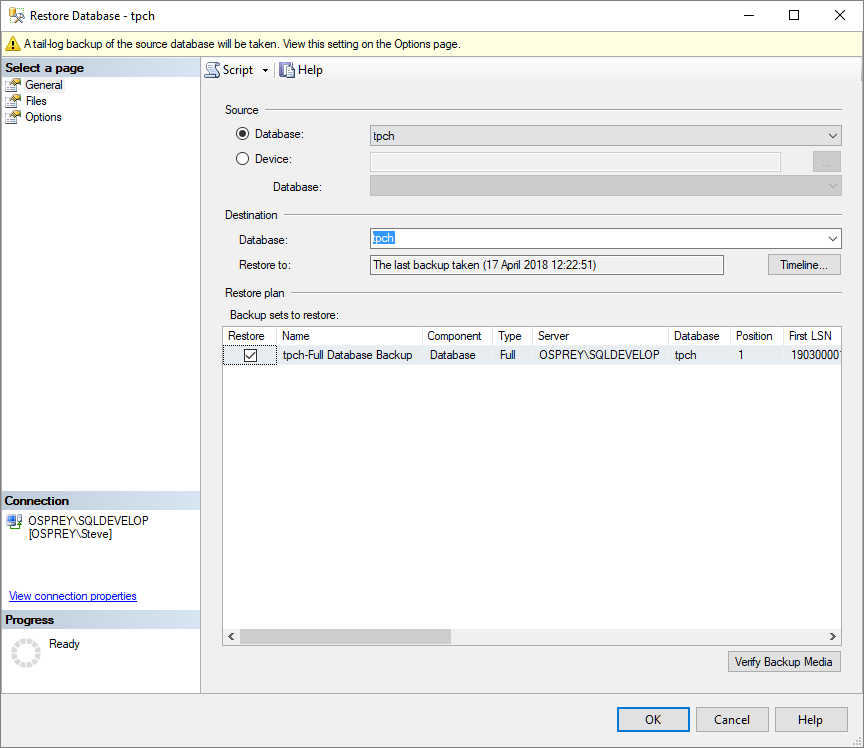

Figure 12.16. Restore SQL Server

Restore SQL Server

and notification given when the database is restored.

Figure 12.17. Restore successful

Restore successful

4.3. Verifying and Backing up the Db2 Schema

The schema build is now complete with the following tables created and populated with the example showing a scale factor 10 schema.

db2 => select tabname, card from syscat.tables where tabschema = 'DB2INST1'

TABNAME                                            CARD
---------------------------------- --------------------
CUSTOMER                                        1500000
LINEITEM                                       60001587
NATION                                               25
ORDERS                                         15000000
PART                                            2000000
PARTSUPP                                        8000000
REGION                                                5
SUPPLIER                                         100000

8 record(s) selected.

db2 => select * from customer fetch first row only

C_CUSTKEY   C_NAME                    C_ADDRESS     C_NATIONKEY C_PHONE         C_ACCTBAL             C_MKTSEGMENT C_COMMENT
----------- ------------------------- ---------------------------------------- ----------- --------------- ------------------------ ------------ -------------------------------------------------------
    1128378 Customer#001128378        OzpJsusYMT              6 651-964-1273    +9.57891000000000E+003 HOUSEHOLD    ironic requests above the furiously special foxes wake

  1 record(s) selected.

db2 =>

At this point the data creation is complete and you are ready to start running a performance test. Before doing so note that as this is a query based workload you have the potential to run multiple tests and it will return the same results as the data is not modified during tests, however there is one exception, under the Driver Options the option to choose a Refresh Function. Further details will be given on the refresh function in the next section however at this point it is sufficient to note that the refresh function when enabled will modify data and no two same refresh functions can be run on the same data set. This means if you choose to include a refresh function and then attempt to re-run the test you will receive an error as the data has been modified. This means that it is strongly recommended to backup or export your data before running a refresh function to ensure that if you wish to run the refresh function multiple times you are prepared to restore your schema to the previous state before running subsequent tests.

$ db2 backup db tpch to /opt/db2/backup

Backup successful. The timestamp for this backup image is : 20180417181222

$ db2 restore db tpch from /opt/db2/backup replace existing
SQL2539W  The specified name of the backup image to restore is the same as the
name of the target database.  Restoring to an existing database that is the
same as the backup image database will cause the current database to be
overwritten by the backup version.
DB20000I  The RESTORE DATABASE command completed successfully.

It is useful to reiterate that before running a query test for all configurations you must make the following setting in the sb2cli.ini file.

[db2inst1 cfg]$ more db2cli.ini
[TPCH]
IgnoreWarnList="'01003'"

Failure to add this setting for each virtual user will result in the query set failing with the following error.

Error in Virtual User 3: [IBM][CLI Driver][DB2/NT64] SQLSTATE 01003: Null values were eliminated from the argument of a column function.

4.4. Verifying and Backing up the MySQL Schema

MySQL does not directly support analytic workloads, however where used the same verification and backup methodology can be used as given for MariaDB.

4.5. Verifying and Backing up the MariaDB Schema

The schema build is now complete with the following tables created and populated with the example showing a scale factor 1 schema.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| tpch               |
+--------------------+
4 rows in set (0.00 sec)

MariaDB [(none)]> use tpch;
Database changed
MariaDB [tpch]> show tables;
+----------------+
| Tables_in_tpch |
+----------------+
| CUSTOMER       |
| LINEITEM       |
| NATION         |
| ORDERS         |
| PART           |
| PARTSUPP       |
| REGION         |
| SUPPLIER       |
+----------------+
8 rows in set (0.00 sec)

At this point the data creation is complete and you are ready to start running a performance test. Before doing so note that as this is a query based workload you have the potential to run multiple tests and it will return the same results as the data is not modified during tests, however there is one exception, under the Driver Options the option to choose a Refresh Function. Further details will be given on the refresh function in the next section however at this point it is sufficient to note that the refresh function when enabled will modify data and no two same refresh functions can be run on the same data set. This means if you choose to include a refresh function and then attempt to re-run the test you will receive an error as the data has been modified. This means that it is strongly recommended to backup or export your data before running a refresh function to ensure that if you wish to run the refresh function multiple times you are prepared to restore your schema to the previous state before running subsequent tests.

./client/mysqldump -u root -pmysql tpch > backup-tpch.sql

./client/mysql -u root -pmysql
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 16
Server version: 10.1.25-MariaDB Source distribution

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> create database tpch;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> Bye
./client/mysql -u root -pmysql tpch < backup-tpch.sql

./client/mysql -u root -pmysql
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 18
Server version: 10.1.25-MariaDB Source distribution

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> use tpch
Database changed
MariaDB [tpch]> show tables;
+----------------+
| Tables_in_tpch |
+----------------+
| CUSTOMER       |
| LINEITEM       |
| NATION         |
| ORDERS         |
| PART           |
| PARTSUPP       |
| REGION         |
| SUPPLIER       |
+----------------+
8 rows in set (0.00 sec)

MariaDB [tpch]> select count(*) from LINEITEM;
+----------+
| count(*) |
+----------+
|  6000385 |
+----------+
1 row in set (0.00 sec)

4.6. Verifying and Backing up the PostgreSQL Schema

The schema build is now complete with the following tables created and populated with the example showing a scale factor 1 schema.

$ ./bin/psql -d tpch
psql (10.1)
Type "help" for help.
tpch=# select relname, n_tup_ins - n_tup_del as rowcount from pg_stat_user_tables;
 relname  | rowcount
----------+----------
 nation   |       25
 lineitem |  6000773
 orders   |  1497000
 customer |   150000
 region   |        5
 supplier |    10000
 part     |   200000
 partsupp |   800000
(8 rows)

tpch=#

At this point the data creation is complete and you are ready to start running a performance test. Before doing so note that as this is a query based workload you have the potential to run multiple tests and it will return the same results as the data is not modified during tests, however there is one exception, under the Driver Options the option to choose a Refresh Function. Further details will be given on the refresh function in the next section however at this point it is sufficient to note that the refresh function when enabled will modify data and no two same refresh functions can be run on the same data set. This means if you choose to include a refresh function and then attempt to re-run the test you will receive an error as the data has been modified. This means that it is strongly recommended to backup or export your data before running a refresh function to ensure that if you wish to run the refresh function multiple times you are prepared to restore your schema to the previous state before running subsequent tests.

pgsql$ ./bin/pg_dump tpch > pgdumpfile

pgsql$ ./bin/psql
psql (10.1)
Type "help" for help.

# drop database tpch;
DROP DATABASE
# drop role tpch;
DROP ROLE

# create user tpch password 'tpch';
CREATE ROLE
# create database tpch owner tpch;
CREATE DATABASE


pgsql$ cat pgdumpfile | ./bin/psql tpch
SET
SET
SET
SET
....
