the Test script is to check connectivity and diagnose performance and configuration errors. It is the Timed Workload that should be used to conduct performance tests. Under Driver Options select Timed Driver Script and click OK, the Timed Driver Script is now loaded.

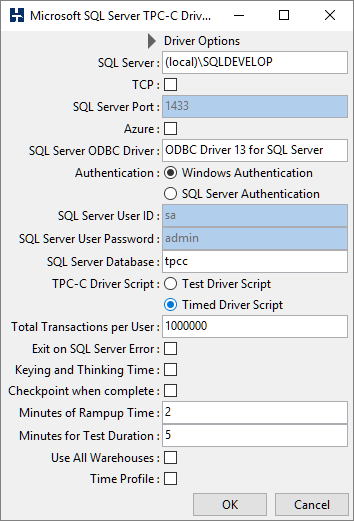

Figure 2.11. Driver Options

Verify the Virtual User Options.

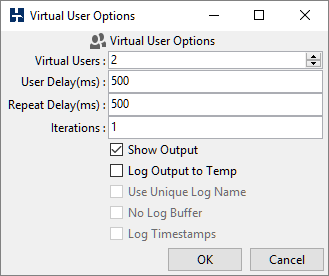

Figure 2.12. Virtual Users

Click create Virtual User and observe that for Timed workloads an additional Virtual User has been created. This Virtual User does not run the workload but provides the timing and monitoring functionality.

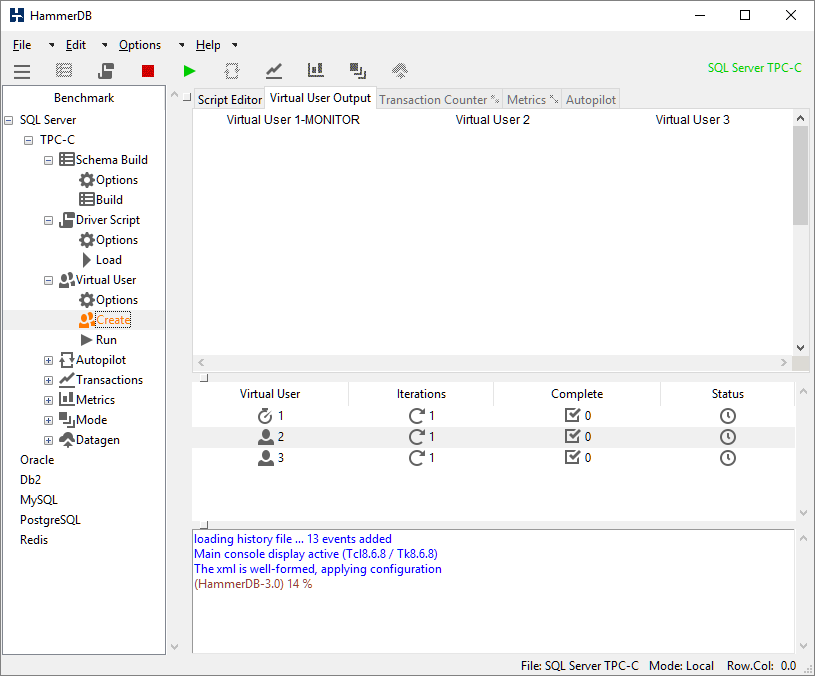

Figure 2.13. Virtual User and Monitor Created

Click Run, the workload will begin but this time without the Virtual User output being written to the screen. The Monitor Virtual User will provide information on Timing as the workload progresses.

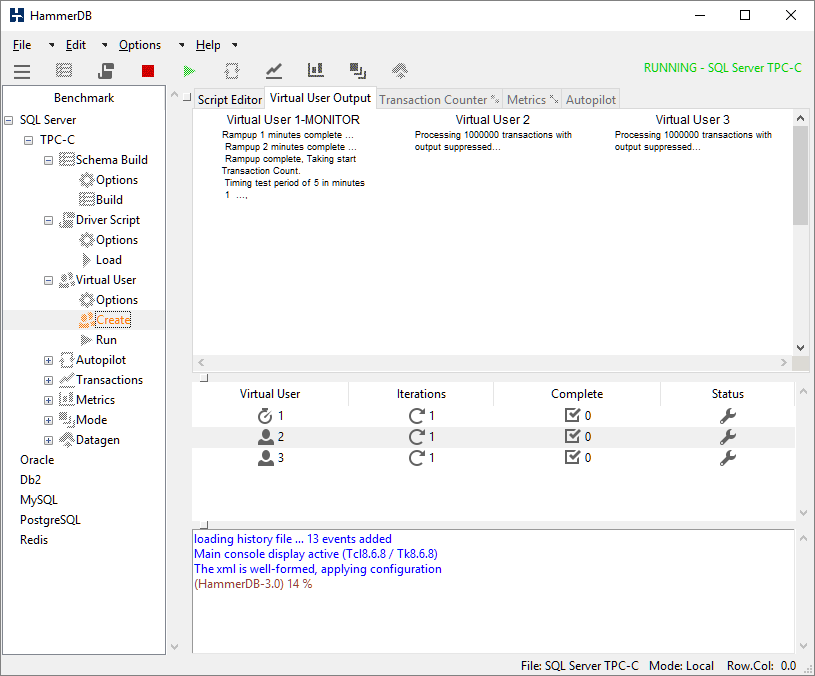

Figure 2.14. Timed Workload Running

On completion observe that the Monitor Virtual User reports a value for TPM and a value for NOPM. TPM is the transactions per minute and is a unique value to how each database processes transactions. NOPM stands for New Orders per Minute and is database independent Consequently TPM cannot be used to compare tests running the same database software however NOPM can.

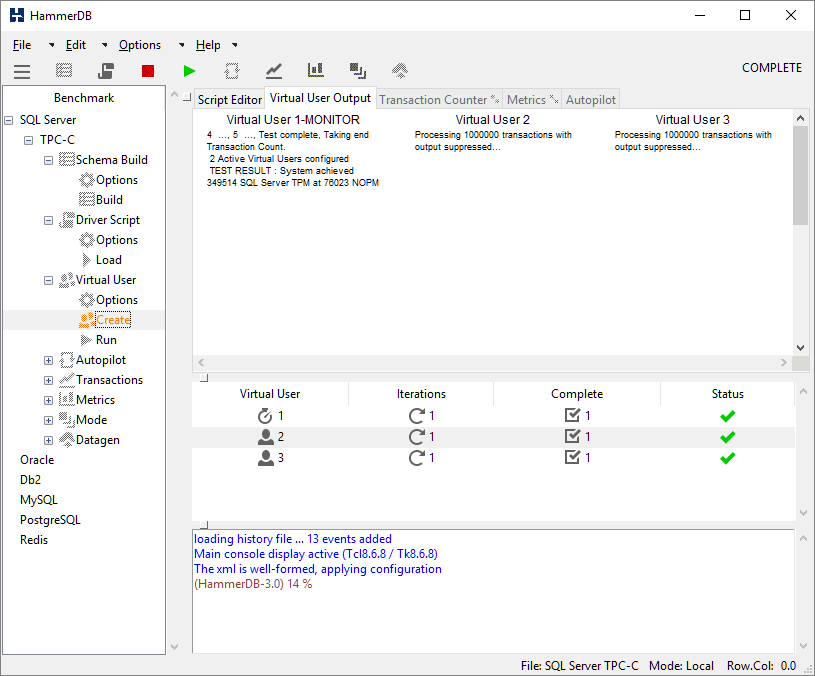

Figure 2.15. Test Result
