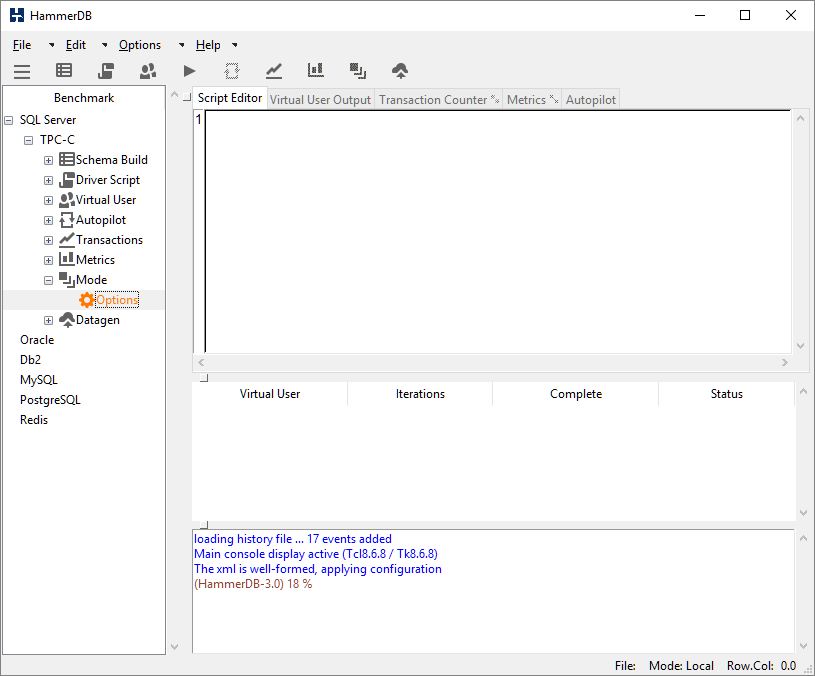

From the tree-view select Mode Options.

Figure 12.2. Mode Options

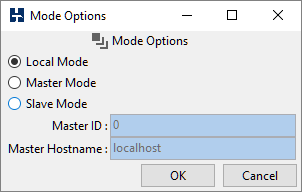

This displays the Mode Options as shown in Figure 3 confirming that the current mode is Local.

Figure 12.3. Mode Options Select

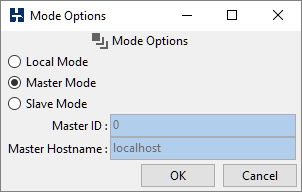

Select Master Mode and click OK.

Figure 12.4. Master Mode Select

Confirm the selection.

Figure 12.5. Mode Confirmation

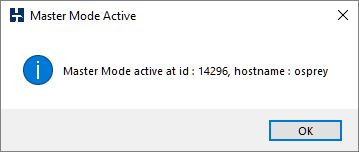

This will show that Master Mode is now active and the ID and hostname it is running on.

Figure 12.6. Mode Active

Note that this will also be recorded in the console display and the current Mode displayed in the status bar at the bottom right of the Window.

Setting Master Mode at id : 14296, hostname : osprey
