How to deploy HammerDB CLI fast with Docker



The TPC publishes an official Docker image on Docker Hub to enable the rapid deployment and testing of databases with HammerDB.  This image includes example scripts to build schemas and test your databases with a single command.

In this post, we will show an example of using Docker to deploy the HammerDB command line and test a database with minimal effort. Our Linux test system is running a MariaDB 10.10 database with Docker installed, so we are going to use Docker to pull the HammerDB image and run the test scripts to measure the database performance.

Docker Hub

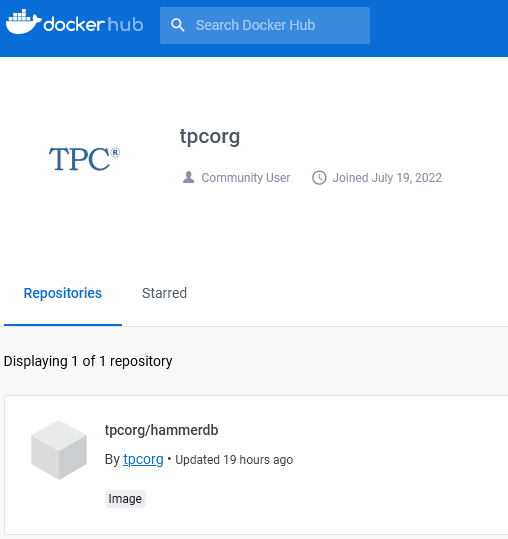

The image can be found on Docker Hub under the tpcorg account.

Docker Pull

On a system with docker installed, use docker pull tpcorg/hammerdb to pull the latest image.

hammerdb@REDPOLL:~$ sudo docker pull tpcorg/hammerdb
[sudo] password for hammerdb:
Using default tag: latest
latest: Pulling from tpcorg/hammerdb
846c0b181fff: Pull complete
10b4eb41ac75: Pull complete
9021d634457d: Pull complete
b365f60d978b: Pull complete
215f30832a93: Pull complete
689ecb6b15e8: Pull complete
d6464f987fdc: Pull complete
08589f44a894: Pull complete
a3fcc3045ce7: Pull complete
f8ceb6609f8d: Pull complete
48e559ac800e: Pull complete
4f4fb700ef54: Pull complete
f9b42217af04: Pull complete
Digest: sha256:69bf8b29a19855bb63c7e5266afeedbbb99540cef2a96c6b6a33e6747b3aa38b
Status: Downloaded newer image for tpcorg/hammerdb:latest
docker.io/tpcorg/hammerdb:latest

Use docker run to run the HammerDB container.

hammerdb@REDPOLL:~$ sudo docker run --network=host -it --name hammerdb tpcorg/hammerdb bash
root@REDPOLL:/home/hammerdb/HammerDB-4.6#

Note that all libraries are pre-installed, so we are ready to start running HammerDB.

root@REDPOLL:/home/hammerdb/HammerDB-4.6# ./hammerdbcli
HammerDB CLI v4.6
Copyright (C) 2003-2022 Steve Shaw
Type "help" for a list of commands
Initialized new SQLite on-disk database /tmp/hammer.DB
hammerdb>librarycheck
Checking database library for Oracle
Success ... loaded library Oratcl for Oracle
Checking database library for MSSQLServer
Success ... loaded library tdbc::odbc for MSSQLServer
Checking database library for Db2
Error: failed to load db2tcl - couldn't load file "/home/hammerdb/HammerDB-4.6/lib/db2tcl2.0.1/libdb2tcl.so": libdb2.so.1: cannot open shared object file: No such file or directory
Ensure that Db2 client libraries are installed and the location in the LD_LIBRARY_PATH environment variable
Checking database library for MySQL
Success ... loaded library mysqltcl for MySQL
Checking database library for PostgreSQL
Success ... loaded library Pgtcl for PostgreSQL
Checking database library for MariaDB
Success ... loaded library mariatcl for MariaDB

Database Configuration

We have run Docker to enable to access the host network so we start the MariaDB on the host with the host bind_address (in this case the system name is redpoll) and the default port of 3306 and start the database.

[mysqld]
skip-log-bin
datadir=/home/hammerdb/mariadb-10.10.2-linux-systemd-x86_64/data
default_authentication_plugin=mysql_native_password
socket=/tmp/mariadb.sock
port=3306
log-error=/tmp/mariadb.log
bind_address=redpoll
...

hammerdb@REDPOLL:~/mariadb-10.10.2-linux-systemd-x86_64$ bin/mysqld --defaults-file=./my.cnf --user=hammerdb
2022-12-14 12:14:05 0 [Note] bin/mysqld (server 10.10.2-MariaDB) starting as process 4483 ...

We can check on the host the IP address of the Docker container,  in this case 172.17.0.1 and allow access to HammerDB from the container as the root user.

root@REDPOLL:/home/hammerdb/mariadb-10.10.2-linux-systemd-x86_64# ip addr show docker0
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:a7:d9:56:a9 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever

MariaDB [(none)]> select password('maria');
+-------------------------------------------+
| password('maria')                         |
+-------------------------------------------+
| *8061C323A725701555411A7E18421F077A840CD7 |
+-------------------------------------------+
1 row in set (0.000 sec)

MariaDB [(none)]> create user 'root'@'172.17.0.1' identified by password '*8061C323A725701555411A7E18421F077A840CD7';
Query OK, 0 rows affected (0.002 sec)
MariaDB [(none)]>

Script Configuration

Under the HammerDB home directory is a scripts directory containing example scripts to test all supported databases except for Db2 in both tcl and python format for both TPROC-C and TPROC-H workloads. There is a driver script that can be used to build, test, delete and query the results of a workload with a single script. The scripts are available in both Python and Tcl formats.

root@REDPOLL:/home/hammerdb/HammerDB-4.6# ls -ltR scripts/
scripts/:
total 8
drwxr-xr-x 8 root root 4096 Dec 13 22:31 python
drwxr-xr-x 8 root root 4096 Dec 13 22:31 tcl
scripts/python:
total 24
drwxr-xr-x 2 root root 4096 Dec 13 22:31 generic
drwxr-xr-x 4 root root 4096 Dec 13 22:31 maria
drwxr-xr-x 4 root root 4096 Dec 13 22:31 mssqls
drwxr-xr-x 4 root root 4096 Dec 13 22:31 mysql
drwxr-xr-x 4 root root 4096 Dec 13 22:31 oracle
drwxr-xr-x 4 root root 4096 Dec 13 22:31 postgres

root@REDPOLL:/home/hammerdb/HammerDB-4.6/scripts/tcl/maria/tprocc# ls
maria_tprocc.sh
maria_tprocc_deleteschema.tcl
maria_tprocc_run.tcl
maria_tprocc_buildschema.tcl
maria_tprocc_result.tcl

Update the scripts to be used with the connection settings for the database to be tested. In this case, the MariaDB database is running on port 3306 on host redpoll.  The socket will not be used as the hostname specified is not “localhost”. The connection parameters for all scripts is all we need to change.

!/bin/tclsh
# maintainer: Pooja Jain
puts "SETTING CONFIGURATION"
dbset db maria
dbset bm TPC-C
diset connection maria_host redpoll
diset connection maria_port 3306
diset connection maria_socket /tmp/mariadb.sock
...

By default the schema will build 5 x the number of warehouses of the CPUs on the system.

set vu [ numberOfCPUs ]
set warehouse [ expr {$vu * 5} ]
diset tpcc maria_count_ware $warehouse

and the test will run with the number of Virtual Users equivalent to the number of CPUs.

Run the test

We can now run the main driver script from the HammerDB home directory to build the schema, run the test, delete the schema and then print the results of the test as follows:

root@REDPOLL:/home/hammerdb/HammerDB-4.6# ./scripts/tcl/maria/tprocc/maria_tprocc.sh
BUILD HAMMERDB SCHEMA
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-
HammerDB CLI v4.6
Copyright (C) 2003-2022 Steve Shaw
Type "help" for a list of commands
Initialized SQLite on-disk database /home/hammerdb/HammerDB-4.6/TMP/hammer.DB using existing tables (229,376 KB)
SETTING CONFIGURATION
Database set to MariaDB
Benchmark set to TPC-C for MariaDB
Value redpoll for connection:maria_host is the same as existing value redpoll, no change made
Value 3306 for connection:maria_port is the same as existing value 3306, no change made
Value /tmp/mariadb.sock for connection:maria_socket is the same as existing value /tmp/mariadb.sock, no change made
Value 20 for tpcc:maria_count_ware is the same as existing value 20, no change made
Value 4 for tpcc:maria_num_vu is the same as existing value 4, no change made
Value root for tpcc:maria_user is the same as existing value root, no change made
Value maria for tpcc:maria_pass is the same as existing value maria, no change made
Value tpcc for tpcc:maria_dbase is the same as existing value tpcc, no change made
Value innodb for tpcc:maria_storage_engine is the same as existing value innodb, no change made
Value false for tpcc:maria_partition is the same as existing value false, no change made
SCHEMA BUILD STARTED
Script cleared
Building 20 Warehouses with 5 Virtual Users, 4 active + 1 Monitor VU(dict value maria_num_vu is set to 4)
Ready to create a 20 Warehouse MariaDB TPROC-C schema
in host REDPOLL:3306 under user ROOT in database TPCC with storage engine INNODB?
Enter yes or no: replied yes
Vuser 1 created - WAIT IDLE
Vuser 2 created - WAIT IDLE
Vuser 3 created - WAIT IDLE
Vuser 4 created - WAIT IDLE
Vuser 5 created - WAIT IDLE
Vuser 1:RUNNING
Vuser 1:Monitor Thread
Vuser 1:CREATING TPCC SCHEMA
Vuser 1:Ssl_cipher
Vuser 1:CREATING DATABASE tpcc
Vuser 1:CREATING TPCC TABLES
Vuser 1:Loading Item
Vuser 2:RUNNING
Vuser 2:Worker Thread
Vuser 2:Waiting for Monitor Thread...
Vuser 2:Ssl_cipher
Vuser 2:Loading 5 Warehouses start:1 end:5
Vuser 2:Start:Wed Dec 14 13:47:59 +0000 2022
Vuser 2:Loading Warehouse
Vuser 2:Loading Stock Wid=1
Vuser 3:RUNNING
Vuser 3:Worker Thread
Vuser 3:Waiting for Monitor Thread...
Vuser 3:Ssl_cipher
Vuser 3:Loading 5 Warehouses start:6 end:10
Vuser 5:Loading Warehouse
Vuser 5:Loading Stock Wid=16
...
Vuser 2:FINISHED SUCCESS
Vuser 3:...2000
Vuser 3:...3000
Vuser 3:Orders Done
Vuser 3:End:Wed Dec 14 13:51:05 +0000 2022
Vuser 3:FINISHED SUCCESS
Vuser 1:Workers: 0 Active 4 Done
Vuser 1:CREATING TPCC STORED PROCEDURES
Vuser 1:GATHERING SCHEMA STATISTICS
Vuser 1:TPCC SCHEMA COMPLETE
Vuser 1:FINISHED SUCCESS
ALL VIRTUAL USERS COMPLETE
SCHEMA BUILD COMPLETED
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-
RUN HAMMERDB TEST
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-
HammerDB CLI v4.6
Copyright (C) 2003-2022 Steve Shaw
Type "help" for a list of commands
Initialized SQLite on-disk database /home/hammerdb/HammerDB-4.6/TMP/hammer.DB using existing tables (372,736 KB)
SETTING CONFIGURATION
Database set to MariaDB
Benchmark set to TPC-C for MariaDB
Value redpoll for connection:maria_host is the same as existing value redpoll, no change made
Value 3306 for connection:maria_port is the same as existing value 3306, no change made
Value /tmp/mariadb.sock for connection:maria_socket is the same as existing value /tmp/mariadb.sock, no change made
Value root for tpcc:maria_user is the same as existing value root, no change made
Value maria for tpcc:maria_pass is the same as existing value maria, no change made
Value tpcc for tpcc:maria_dbase is the same as existing value tpcc, no change made
Value timed for tpcc:maria_driver is the same as existing value timed, no change made
Value 2 for tpcc:maria_rampup is the same as existing value 2, no change made
Value 5 for tpcc:maria_duration is the same as existing value 5, no change made
Value true for tpcc:maria_allwarehouse is the same as existing value true, no change made
Value true for tpcc:maria_timeprofile is the same as existing value true, no change made
Script loaded, Type "print script" to view
TEST STARTED
Vuser 1 created MONITOR - WAIT IDLE
Vuser 2 created - WAIT IDLE
Vuser 3 created - WAIT IDLE
Vuser 4 created - WAIT IDLE
Vuser 5 created - WAIT IDLE
5 Virtual Users Created with Monitor VU
Transaction Counter Started
Transaction Counter thread running with threadid:tid0x7fec51ffb700
0 MariaDB tpm
Vuser 1:RUNNING
Vuser 1:Initializing xtprof time profiler
Vuser 1:Ssl_cipher
Vuser 1:Beginning rampup time of 2 minutes
Vuser 2:RUNNING
Vuser 2:Initializing xtprof time profiler
Vuser 3:RUNNING
Vuser 2:Ssl_cipher
Vuser 3:Initializing xtprof time profiler
Vuser 2:VU 2 : Assigning WID=1 based on VU count 4, Warehouses = 20 (1 out of 5)
Vuser 3:Ssl_cipher
Vuser 2:VU 2 : Assigning WID=5 based on VU count 4, Warehouses = 20 (2 out of 5)
Vuser 3:VU 3 : Assigning WID=2 based on VU count 4, Warehouses = 20 (1 out of 5)
Vuser 2:VU 2 : Assigning WID=9 based on VU count 4, Warehouses = 20 (3 out of 5)
Vuser 3:VU 3 : Assigning WID=6 based on VU count 4, Warehouses = 20 (2 out of 5)
Vuser 2:VU 2 : Assigning WID=13 based on VU count 4, Warehouses = 20 (4 out of 5)
Vuser 3:VU 3 : Assigning WID=10 based on VU count 4, Warehouses = 20 (3 out of 5)
Vuser 2:VU 2 : Assigning WID=17 based on VU count 4, Warehouses = 20 (5 out of 5)
Vuser 3:VU 3 : Assigning WID=14 based on VU count 4, Warehouses = 20 (4 out of 5)
Vuser 2:Processing 10000000 transactions with output suppressed...
Vuser 3:VU 3 : Assigning WID=18 based on VU count 4, Warehouses = 20 (5 out of 5)
Vuser 3:Processing 10000000 transactions with output suppressed...
Vuser 4:RUNNING
Vuser 4:Initializing xtprof time profiler
Vuser 4:Ssl_cipher
Vuser 4:VU 4 : Assigning WID=3 based on VU count 4, Warehouses = 20 (1 out of 5)
Vuser 4:VU 4 : Assigning WID=7 based on VU count 4, Warehouses = 20 (2 out of 5)
Vuser 4:VU 4 : Assigning WID=11 based on VU count 4, Warehouses = 20 (3 out of 5)
Vuser 4:VU 4 : Assigning WID=15 based on VU count 4, Warehouses = 20 (4 out of 5)
Vuser 4:VU 4 : Assigning WID=19 based on VU count 4, Warehouses = 20 (5 out of 5)
Vuser 4:Processing 10000000 transactions with output suppressed...
Vuser 5:RUNNING
Vuser 5:Initializing xtprof time profiler
Vuser 5:Ssl_cipher
Vuser 5:VU 5 : Assigning WID=4 based on VU count 4, Warehouses = 20 (1 out of 5)
Vuser 5:VU 5 : Assigning WID=8 based on VU count 4, Warehouses = 20 (2 out of 5)
Vuser 5:VU 5 : Assigning WID=12 based on VU count 4, Warehouses = 20 (3 out of 5)
Vuser 5:VU 5 : Assigning WID=16 based on VU count 4, Warehouses = 20 (4 out of 5)
Vuser 5:VU 5 : Assigning WID=20 based on VU count 4, Warehouses = 20 (5 out of 5)
Vuser 5:Processing 10000000 transactions with output suppressed...
54690 MariaDB tpm
86406 MariaDB tpm
63144 MariaDB tpm
55824 MariaDB tpm
90012 MariaDB tpm
Vuser 1:Rampup 1 minutes complete ...
90228 MariaDB tpm
93984 MariaDB tpm
79008 MariaDB tpm
67278 MariaDB tpm
62952 MariaDB tpm
93834 MariaDB tpm
107478 MariaDB tpm
Vuser 1:Rampup 2 minutes complete ...
Vuser 1:Rampup complete, Taking start Transaction Count.
Vuser 1:Timing test period of 5 in minutes
104154 MariaDB tpm
95004 MariaDB tpm
82794 MariaDB tpm
83328 MariaDB tpm
74424 MariaDB tpm
43962 MariaDB tpm
Vuser 1:1 ...,
105270 MariaDB tpm
37362 MariaDB tpm
12816 MariaDB tpm
5304 MariaDB tpm
10470 MariaDB tpm
6084 MariaDB tpm
Vuser 1:2 ...,
5730 MariaDB tpm
6048 MariaDB tpm
6768 MariaDB tpm
9438 MariaDB tpm
11280 MariaDB tpm
10428 MariaDB tpm
Vuser 1:3 ...,
17022 MariaDB tpm
14310 MariaDB tpm
19374 MariaDB tpm
22326 MariaDB tpm
16698 MariaDB tpm
20100 MariaDB tpm
21000 MariaDB tpm
Vuser 1:4 ...,
10902 MariaDB tpm
14898 MariaDB tpm
60228 MariaDB tpm
37632 MariaDB tpm
50778 MariaDB tpm
34044 MariaDB tpm
Vuser 1:5 ...,
Vuser 1:Test complete, Taking end Transaction Count.
Vuser 1:4 Active Virtual Users configured
Vuser 1:TEST RESULT : System achieved 15199 NOPM from 35354 MariaDB TPM
Vuser 1:Gathering timing data from Active Virtual Users...
48096 MariaDB tpm
Vuser 5:FINISHED SUCCESS
Vuser 2:FINISHED SUCCESS
Vuser 3:FINISHED SUCCESS
Vuser 4:FINISHED SUCCESS
Vuser 1:Calculating timings...
8226 MariaDB tpm
Vuser 1:Writing timing data to /home/hammerdb/HammerDB-4.6/TMP/hdbxtprofile.log
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
0 MariaDB tpm
Vuser 1:FINISHED SUCCESS
ALL VIRTUAL USERS COMPLETE
0 MariaDB tpm
vudestroy success
Transaction Counter thread running with threadid:tid0x7fec51ffb700
Stopping Transaction Counter
TEST COMPLETE
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-
DROP HAMMERDB SCHEMA
HammerDB CLI v4.6
Copyright (C) 2003-2022 Steve Shaw
Type "help" for a list of commands
Initialized SQLite on-disk database /home/hammerdb/HammerDB-4.6/TMP/hammer.DB using existing tables (397,312 KB)
SETTING CONFIGURATION
Database set to MariaDB
Benchmark set to TPC-C for MariaDB
Value redpoll for connection:maria_host is the same as existing value redpoll, no change made
Value 3306 for connection:maria_port is the same as existing value 3306, no change made
Value /tmp/mariadb.sock for connection:maria_socket is the same as existing value /tmp/mariadb.sock, no change made
Value root for tpcc:maria_user is the same as existing value root, no change made
Value maria for tpcc:maria_pass is the same as existing value maria, no change made
Value tpcc for tpcc:maria_dbase is the same as existing value tpcc, no change made
 DROP SCHEMA STARTED
Script cleared
Deleting schema with 1 Virtual User
Do you want to delete the TPCC TPROC-C schema
 in host REDPOLL:3306 under user ROOT?
Enter yes or no: replied yes
Vuser 1 created - WAIT IDLE
Vuser 1:RUNNING
Vuser 1:Ssl_cipher
DROP SCHEMA COMPLETED
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-
HAMMERDB RESULT
HammerDB CLI v4.6
Copyright (C) 2003-2022 Steve Shaw
Type "help" for a list of commands
Initialized SQLite on-disk database /home/hammerdb/HammerDB-4.6/TMP/hammer.DB using existing tables (397,312 KB)
TRANSACTION RESPONSE TIMES
{
  "DELIVERY": {
    "elapsed_ms": "439561.0",
    "calls": "3320",
    "min_ms": "4.383",
    "avg_ms": "59.972",
    "max_ms": "77608.65",
    "total_ms": "199106.945",
    "p99_ms": "307.374",
    "p95_ms": "10.461",
    "p50_ms": "5.74",
    "sd": "1684200.807",
    "ratio_pct": "45.476"
  },
  "NEWORD": {
    "elapsed_ms": "439561.0",
    "calls": "33945",
    "min_ms": "1.227",
    "avg_ms": "5.016",
    "max_ms": "17419.641",
    "total_ms": "170261.191",
    "p99_ms": "8.509",
    "p95_ms": "4.596",
    "p50_ms": "2.503",
    "sd": "105049.036",
    "ratio_pct": "38.888"
  },
  "PAYMENT": {
    "elapsed_ms": "439561.0",
    "calls": "33696",
    "min_ms": "0.602",
    "avg_ms": "1.512",
    "max_ms": "2687.342",
    "total_ms": "50964.941",
    "p99_ms": "3.443",
    "p95_ms": "1.773",
    "p50_ms": "1.004",
    "sd": "23559.832",
    "ratio_pct": "11.64"
  },
  "OSTAT": {
    "elapsed_ms": "439561.0",
    "calls": "3393",
    "min_ms": "0.454",
    "avg_ms": "3.023",
    "max_ms": "1321.03",
    "total_ms": "10255.874",
    "p99_ms": "3.218",
    "p95_ms": "1.519",
    "p50_ms": "0.868",
    "sd": "44465.804",
    "ratio_pct": "2.342"
  },
  "SLEV": {
    "elapsed_ms": "439561.0",
    "calls": "3310",
    "min_ms": "0.82",
    "avg_ms": "1.352",
    "max_ms": "184.051",
    "total_ms": "4476.381",
    "p99_ms": "3.524",
    "p95_ms": "1.995",
    "p50_ms": "1.135",
    "sd": "3229.144",
    "ratio_pct": "1.022"
  }
}

TRANSACTION COUNT
{"MariaDB tpm": {
    "0": "2022-12-14 14:00:23",
    "54690": "2022-12-14 13:51:19",
    "86406": "2022-12-14 13:51:29",
    "63144": "2022-12-14 13:51:39",
    "55824": "2022-12-14 13:51:49",
    "90012": "2022-12-14 13:51:59",
    "90228": "2022-12-14 13:52:10",
    "93984": "2022-12-14 13:52:19",
    "79008": "2022-12-14 13:52:29",
    "67278": "2022-12-14 13:52:39",
    "62952": "2022-12-14 13:52:49",
    "93834": "2022-12-14 13:52:59",
    "107478": "2022-12-14 13:53:09",
    "104154": "2022-12-14 13:53:19",
    "95004": "2022-12-14 13:53:29",
    "82794": "2022-12-14 13:53:39",
    "83328": "2022-12-14 13:53:49",
    "74424": "2022-12-14 13:53:59",
    "43962": "2022-12-14 13:54:09",
    "105270": "2022-12-14 13:54:19",
    "37362": "2022-12-14 13:54:29",
    "12816": "2022-12-14 13:54:39",
    "5304": "2022-12-14 13:54:49",
    "10470": "2022-12-14 13:54:59",
    "6084": "2022-12-14 13:55:09",
    "5730": "2022-12-14 13:55:19",
    "6048": "2022-12-14 13:55:29",
    "6768": "2022-12-14 13:55:39",
    "9438": "2022-12-14 13:55:49",
    "11280": "2022-12-14 13:56:00",
    "10428": "2022-12-14 13:56:10",
    "17022": "2022-12-14 13:56:22",
    "14310": "2022-12-14 13:56:30",
    "19374": "2022-12-14 13:56:40",
    "22326": "2022-12-14 13:56:50",
    "16698": "2022-12-14 13:57:00",
    "20100": "2022-12-14 13:57:10",
    "21000": "2022-12-14 13:57:20",
    "10902": "2022-12-14 13:57:30",
    "14898": "2022-12-14 13:57:40",
    "60228": "2022-12-14 13:57:50",
    "37632": "2022-12-14 13:58:00",
    "50778": "2022-12-14 13:58:10",
    "34044": "2022-12-14 13:58:20",
    "48096": "2022-12-14 13:58:32",
    "8226": "2022-12-14 13:58:45"
  }}

HAMMERDB RESULT
[
  "6399D4CD5EFC03E233239383",
  "2022-12-14 13:51:09",
  "4 Active Virtual Users configured",
  "TEST RESULT : System achieved 15199 NOPM from 35354 MariaDB TPM"
]

Note that we captured the job timings, transaction count and test result at the end of the test.

Results storage

HammerDB will export a TMP directory in the HammerDB home directory for the storage of configuration databases and a text output of results.

root@REDPOLL:/home/hammerdb/HammerDB-4.6/TMP# ls
database.db  hammer.DB-journal                          mariadb.db      postgresql.db
db2.db       hdbxtprofile.log                           mssqlserver.db
generic.db   maria_tprocc                               mysql.db
hammer.DB    maria_tprocc_6399D4CD5EFC03E233239383.out  oracle.db

However with the jobs command, you can also query the results directly from the repository.

hammerdb>job "6399D4CD5EFC03E233239383" result
[
  "6399D4CD5EFC03E233239383",
  "2022-12-14 13:51:09",
  "4 Active Virtual Users configured",
  "TEST RESULT : System achieved 15199 NOPM from 35354 MariaDB TPM"
]

Stopping and Starting Docker

Use the Docker, stop, start and attach commands to run the HammerDB container when required.

root@REDPOLL:~# docker stop hammerdb
hammerdb
root@REDPOLL:~# docker start hammerdb
hammerdb
root@REDPOLL:~# docker attach hammerdb
root@REDPOLL:/home/hammerdb/HammerDB-4.6#

Summary

In this post we have used the offical HammerDB docker container from tpcorg to rapidly deploy HammerDB and run the included example scripts to gain an insight into database performance on our host system. You can also run HammerDB interactively or with your own scripts to gain further insight.
