HammerDB Concepts and Architecture

HammerDB is open source and all of the source code is available at the sourceforge Git development site here https://sourceforge.net/p/hammerdb/code/ci/master/tree/ or the github mirror here https://github.com/sm-shaw/HammerDB.  This Git repository is updated with every release.  In fact all of this source code is also included in readable form with each and every release.  However if you have downloaded the source code and are looking to add features or make modifications such as adding new databases you may be wondering once you have the source code where to start. This guide to HammerDB concepts and architectures is aimed  at helping you understand how HammerDB is built and how it can be extended and modified.

Programming Languages

When you download the source code for HammerDB you can see that the programming language it is written in is called TCL .  TCL is a dynamic or interpreted language where the code is compiled into bytecode at runtime.  It is important to understand at the outset that HammerDB is written in TCL because of the unique threading capabilities that TCL brings. This article Threads Done Right… With Tcl gives an excellent overview of these capabilities and it should be clear that to build a scalable benchmarking tool this thread performance and scalability is key.  In contrast for example Python has the Global Interpreter Lock or GIL – “the global interpreter lock, or GIL, is a mutex that prevents multiple native threads from executing Python bytecodes at once. This lock is necessary mainly because CPython’s memory management is not thread-safe“. Therefore only TCL provides the foundation for building a tool such as HammerDB although Python can be loaded in the threads if desired.  If you are not familiar with TCL you can also see that it is closely associated with a graphical user interface toolkit called TK.  For HammerDB if you run the command-line version you are using TCL only, if you are running the graphical environment you are using TCL and TK. (Note that for the features used HammerDB will only run with TCL/TK 8.6 or above).  So if you have downloaded the source code or the pre-packaged version and look for example in files under the src directory you will see a number of files with a .tcl extension that you can read – these are identical in both the source code and the pre-packaged version.   It is of note that we have not discussed the operating system yet, that is because the source code and the code included with the pre-packaged versions is identical whether it is running on Linux or Windows on x86-64 architecture (or any other platform).  That is a slight exaggeration as there are some architectural differences (such as command-line console interaction) however these can be managed with a statement such as follows:

if {[string match windows $::tcl_platform(platform)]} {

Otherwise the code is the same on all platforms.  Clearly however there is a difference between platforms as you can tell from the download page and when you download the pre-packaged version you have and additional bin and lib directories that are (mostly) unique to a particular platform. These bin and lib directories are not included with the source code.  TCL was designed as a language to be closely tied with C/C++ and at this lower level there is the compiled TCL (tclsh) or TCL/TK (wish) interpreter and supporting libraries.  You can download and compile TCL/TK 8.6 or above yourself and replace the existing interpreter to be able to run the HammerDB interface from the source code by adding the bin and lib directories.  However HammerDB will not be able to connect to a database yet and the librarycheck command included with the CLI gives an indication why.

HammerDB CLI v3.1
Copyright (C) 2003-2018 Steve Shaw
Type "help" for a list of commands
The xml is well-formed, applying configuration
Checking database library for Oracle
Success ... loaded library Oratcl for Oracle
Checking database library for MSSQLServer
Success ... loaded library tclodbc for MSSQLServer
Checking database library for Db2
Success ... loaded library db2tcl for Db2
Checking database library for MySQL
Success ... loaded library mysqltcl for MySQL
Checking database library for PostgreSQL
Success ... loaded library Pgtcl for PostgreSQL
Checking database library for Redis
Success ... loaded library redis for Redis


Database Extensions

Also written in C HammerDB includes the pre-compiled extensions to the native interfaces for the databases that HammerDB supports as well as other supporting packages for functions such as graphing. Some of these packages have been modified from the original open source packages to ensure the correct functionality for HammerDB. All extensions have been compiled with gcc on Linux and MSVC on Windows for the x86-64 platform and require the presence of the compatible database library at runtime. For commercial databases this third-party library is the only non-open source component of the stack.

Database Extension
Oracle/TimesTen Oratcl 4.6
MS SQL Server/Linux and Windows Debian patch version of TclODBC 2.5.1 updated to 2.5.2
IBM Db2 updated version of db2tclBelinksy to add bind variable support as version 2.0.0
MariaDB/MySQL/Amazon Aurora MySQLTcl version 3.052
PostgreSQL/Greenplum/Amazon Redshift PgTcl Pgtclng version 2.1.1
Redis In-built pure TCL client
Trafodion SQL on Hadoop (Deprecated in HammerDB v3.0 ) TDBC included with TCL

Other Extensions

Functionality Extension
Clearlooks GUI Theme for Linux (but can be used on Windows)
Expect Console functionality for command-line functionality on Linux
tWAPI TCL Windows API used for command-line and CPU agent functionality on Windows
tkblt BLT graphical package extension for metrics for both Linux and Windows

Pure Tcl Modules

In addition to compiled extensions there are also a number of TCL modules located in the modules directory, these extensions are similar to the packages in the lib directory however the main distinction is that almost all of these modules are written in TCL rather than compiled extensions written in C.  These modules may also call additional packages for example as shown below the ReadLine module calls either Expect or tWAPI depending on the platform.

package provide TclReadLine 1.2
#TclReadLine2 modified to use Expect on Linux and Twapi on Windows
if {[string match windows $::tcl_platform(platform)]} {
package require twapi
package require twapi_input
} else {
package require Expect

Loading Extensions and Modules

The key command for loading extensions and modules is “package require”, for example the following extract at the top of the Oracle driver script shows the loading of the compiled Oratcl package as well as the common functions module for the TPC-C workload.

set library Oratcl ;# Oracle OCI Library
if [catch {package require $library} message] { error "Failed to load $library - $message" }
if [catch {::tcl::tm::path add modules} ] { error "Failed to find modules directory" }
if [catch {package require tpcccommon} ] { error "Failed to load tpcc common functions" } else { namespace import tpcccommon::* }

It should be clear that HammerDB is easy to extend by adding a new package into the lib (compiled) or modules (Pure TCL) directories and an example of how this is done is shown with adding Python support. The include directory contains the platform specific C header files for this purpose.


The agent directory contains the agent code to be run on the system under test to gather the CPU utilisation information. On Linux this runs the mpstat command on Windows mpstat is provided by HammerDB.


The images directory contains TCL files with the images used by HammerDB encoded in base64 format.


The configuration for HammerDB is defined by a number of XML files in the config directory.  HammerDB is modular meaning that this configuration determines the files and directories to load from the src directory at runtime.  At the top level is the database.xml that determines the other database configurations to load. Note that the commands field in this file only determines which words to highlight in the graphical text editor rather than defining the commands themselves.

Starting HammerDB

When you start HammerDB GUI on Linux the hammerdb file is a bash script file that calls the Linux compiled wish (window shell) executable that then runs the TCL commands incorporated within that shell file. On Windows there is an external batch file that calls the Windows compiled wish and then runs TCL commands within the hammerdb file.  For the command line it is the TCL shell that is run rather than wish.  The hammerdb file acts as a loader that loads the modules, the icon images and the generic source, the XML based configuration is then loaded followed by the database specific components dependent on this configuration.  The GUI or command line interface is then started.  As virtual users are started the database specific packages and workload specific modules are loaded into the virtual user threads. The following diagram illustrates the process. Note that as the diagram illustrates most of the code is shared between both command-line and GUI implementations and what and how the virtual users run this code is identical, therefore both GUI and commmand-line produce identical results.

XML to Dict

As HammerDB is modular under the src directory is a generic directory for shared source and a directory for each of the databases that has the same name as the XML configuration file for that database in the config directory.  HammerDB reads the XML at startup and manages the parameters internally in a 2 level nested dict structure per database.   For example for MySQL the dict is shown and the retrieval of a single value.

HammerDB CLI v3.1
Copyright (C) 2003-2018 Steve Shaw
Type "help" for a list of commands
The xml is well-formed, applying configuration
hammerdb>puts $configmysql
connection {mysql_host mysql_port 3306} tpcc {mysql_count_ware 1 mysql_num_vu 1 mysql_user root mysql_pass mysql mysql_dbase tpcc mysql_storage_engine innodb mysql_partition false mysql_total_iterations 1000000 mysql_raiseerror false mysql_keyandthink false mysql_driver test mysql_rampup 2 mysql_duration 5 mysql_allwarehouse false mysql_timeprofile false} tpch {mysql_scale_fact 1 mysql_tpch_user root mysql_tpch_pass mysql mysql_tpch_dbase tpch mysql_num_tpch_threads 1 mysql_tpch_storage_engine myisam mysql_total_querysets 1 mysql_raise_query_error false mysql_verbose false mysql_refresh_on false mysql_update_sets 1 mysql_trickle_refresh 1000 mysql_refresh_verbose false mysql_cloud_query false}

hammerdb>puts [ dict get $configmysql connection mysql_host ]


As the options boxes in the GUI are filled out or values set at the command-line these values are stored and retrieved from these underlying dicts.  At the top level the database.xml file determines the database specific data is read and the GUI populated at runtime rather than being fixed. For example changing the description field in the database.xml file as follows:

<workloads>TPC-C TPC-H</workloads>
<commands>mysql::sel mysqluse mysqlescape mysqlsel mysqlnext mysqlseek mysqlmap mysqlexec mysqlclose mysqlinfo mysqlresult mysqlcol mysqlstate mysqlinsertid mysqlquery mysqlendquery mysqlbaseinfo mysqlping mysqlchangeuser mysqlreceive</commands>

Will then display as follows in the interface.

Also note that the library field allows another library interface to be modified and recompiled or multiple version of libraries used for different databases.

Once the XML configuration is loaded the database specific files are loaded according to a directory in the database name and file names determined by prefix and the following purpose.

hammerdb>print db
Database Oracle set.
To change do: dbset db prefix, one of:
Oracle = ora MSSQLServer = mssqls Db2 = db2 MySQL = mysql PostgreSQL = pg Redis = redis
Extension Purpose
met Graphical metrics, currently only completed for Oracle
olap Analytic workloads, currently TPC-H related build and driver
oltp Transactional workloads, currently TPC-C related build and driver
opt Graphical options dialogs, takes values from database specific dict and allows modification and saving
otc Database specific online transaction counter

Therefore for example in the directory /src/db2 the file db2opt defines the options dialogs when the db2 database is selected to load and store the dict based values. Then when a schema build is selected or driver script loaded the scripts are populated with those values entered into the dialog.

Virtual Users

Virtual Users within HammerDB are operating system threads.  Each thread loads its own TCL interpreter and its own database interface packages.  If you have not read the article Threads Done Right… With Tcl then now is a good time to do so to understand why HammerDB is so scalable.  (Note that the metrics interface and transaction counter also run in threads).

For example on Windows drilling down on the process explorer shows that the threads are evenly allocated to a different preferred CPU thereby making the best possible utilisation of the resources available.  When the virtual users are run the threads are posted the script in the Script Editor in the GUI (or the loaded script for the command line). At its simplest the following is a Hello World! program in TCL.

puts "Hello World!"

Load this into the script editor and run it (or for one virtual user use the “Test TCL Code” button and the Virtual User will receive and run the program.

Using the File -> Save dialog you can modify existing scripts and then save and reload them for later use.

Running the Build and Driver Scripts

For the schema build or timed tests each virtual user receives and runs an identical copy of the script however is able to do something different. Each virtual user or operating system can identify its own thread id and therefore can be tasked with running a different part of the workload accordingly. This is how multiple virtual users will load a different part of the schema or how the virtual user that monitors a workload is identified.  Also the threads can “talk to each other” and respond to user input such as pressing the stop button using thread shared variables.  Otherwise overheads are minimal each virtual user will run entirely independently without interference from other threads and without locking overhead.  Therefore running HammerDB on a multi-core and multi-threaded CPU is strongly recommended as you will be able to take advantage of that processing power.  Output from virtual users are displayed to the virtual user output window.  Note that operating system displays are not thread safe and cannot be updated by more than one thread at a time, therefore each virtual user sends its output to the master thread for display. Clearly a “Test Script” will not be able to generate the same level of throughput as a “Timed Script” for this reason. HammerDB also manages the virtual user status and reports any errors produced by the virtual users to the console.

Autopilot and Modes

In addition to direct interaction HammerDB also provides an autopilot feature to automate testing.  This feature to be used in conjunction with timed tests allows for multiple tests to be run consecutively unattended without manual interaction. The way this feature works is for a timer to run at the user specified interval and at this timer interval HammerDB will automatically press the buttons that manual interaction would do. From a conceptual standpoint it is important to understand this as autopilot actually presses the same buttons that a user would, the only difference is that this is on a timed basis. Therefore if you want an autopilot run to complete successfully ensure that the time interval is long enough for your test to complete. There is no autopilot feature in the command-line tool as it is easier to script this functionality with the command-line.

Typically HammerDB will run in Local Mode however this modes feature allows an instance of HammerDB to be created as a Master and then multiple Slave instances connected to HammerDB to be controlled by the Master through network communication. This feature has been designed for scenarios where the user wants to direct a workload specifically at multiple database instances in a cluster or in a virtualized environment.


It should now be clear that HammerDB is a simple and modular application yet extremely powerful and high performance because of the multi-threaded architecture and design. HammerDB is also highly extensible and extensions written in C can be added to support for example new databases (or existing extensions used). After this simply adding a new config file and adding these details to database.xml and creating a new directory under the src directory is all that is needed to add another database to HammerDB.  Similarly new workloads can be added by modifying existing files. HammerDB will then take care of running these workloads either graphically or at the command line.

Of the most importance however it should be clear that HammerDB is completely and entirely open source. TCL itself is open source, all of the database extensions are open source and the database libraries themselves with the exception of commerical databases are open-source as well.  Also clearly all of the HammerDB code is open-source and readable within each installation so if you desire you can inspect literally every line of code right from the TCL interpreter to the extensions and HammerDB if you wish to do so.  Therefore nothing is hidden and nothing is proprietary giving absolute confidence in the results that HammerDB produces.  You are also empowered to modify, add and contribute improvements. HammerDB really is all about making database performance open-source and demystifying the often hidden aspects of database benchmarking from workloads to results.

How to improve Redo, Transaction Log and WAL throughput for HammerDB benchmarks

If you are new to running Oracle, SQL Server, MySQL and PostgreSQL TPC-C workloads with HammerDB and have needed to investigate I/O performance the chances are that you have experienced waits on writing to the Redo, Transaction Log or WAL depending on the database you are testing. This post at an entry-level discusses the options you have to improve log throughput in your benchmark environment.

Note that the parameters in this article do have the potential to cause data loss if implemented on your production database without full understanding so ensure that you have read this post in its entirety before applying the settings to your environment.

Logging Waits

Firstly we’ll take a look at why these log waits are so important to database performance in an OLTP environment. The diagram below shows a much simplified way how the I/O in a typical relational database operates.

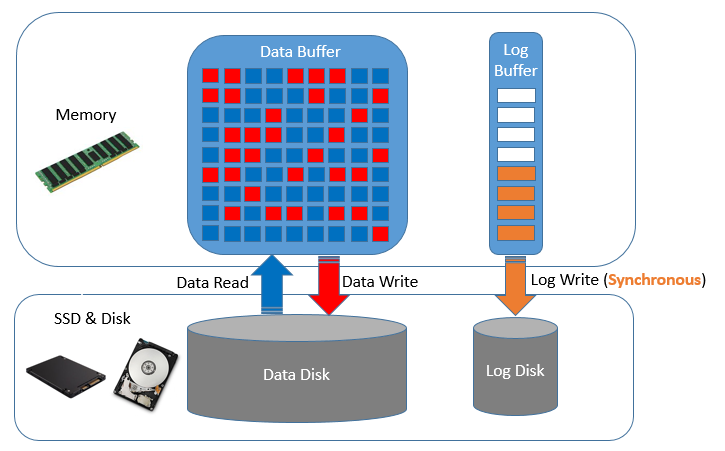

Before  the database is started your data should  be in a consistent state on disk. When the database is started a component of the in-memory database instance is the data buffer. As data is requested (depending on the type of read), data blocks will be fetched and stored in-memory in this buffer, show in-blue.  Over time your workload will modify this data, shown in-red, however these changed data blocks or pages are not written back to the data disk immediately. In fact a single block or page may be modified in-memory multiple times before it is eventually at some point in-time written back to the data disk. In contrast to many people’s understanding of a traditional database against an “in-memory” database it is likely that if the buffer is large enough most of the data you are operating on remains in-memory for the duration of a HammerDB OLTP test. Therefore you are likely to see a spike of reads at the start of the test (this is why there is ramp-up time) and then potentially depending on your configuration the data disk can be relatively quiet for the duration of the test while periodically seeing write activities related to checkpoints (which will be discussed later).

However it should be clear that in the case of a failure such as a crash of the database all of the data in-memory would be lost.  Therefore you have the redo, transaction or write-ahead log recording all of the changes to the database. Typically we will see a constant stream of write activity to this disk with no (or minimal) read activity.  If there is a failure of the database, subsequently on startup this log will be used to recover the data on the data disk up to the point of the most recent transaction (or the chosen recovery point) i.e. replaying all of those changes in-memory that we lost. To recover right up to the most recent point those writes to the log needed to be synchronous i.e. when a transaction is committed the session waits until the database has confirmed that the changes have been recorded to the log before continuing work.  Note that this does not mean that the log is only written at the time of a commit, changes will be streamed into an in-memory log buffer and written to the log disk constantly however once a transaction is committed the user sessions will wait until this log write is confirmed. This wait by the session is what is typically seen as a log wait.  Bear in mind that writing to the log takes CPU, it will be a log writing thread or process that needs CPU time to be scheduled to be active,  it also requires memory for the log buffer and finally disk for the log itself, therefore this log wait is more than just the disk component. Additionally for the log disk component it is latency for an individual write that is crucial rather than the total I/O bandwidth.

As HammerDB supports graphical metrics for Oracle, this provides the best illustration however the concepts apply in general terms to all databases.

Oracle Log File Sync

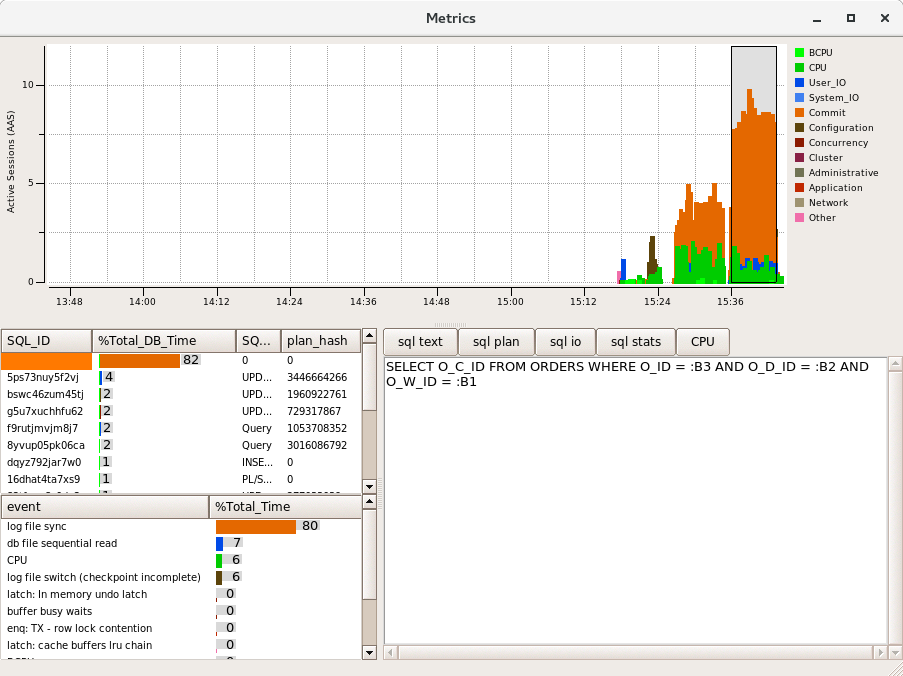

The following example takes a snapshot of Oracle metrics showing 3 spikes of activity on a consumer level PC running Oracle within a Virtual Box VM for illustration purposes.The database has been created with the default redo log configuration which is 2 redo logs of 200MB in size each.  The first example shows a data load, the second a TPC-C based workload with 5 virtual users and the 2nd example with 10 virtual users.

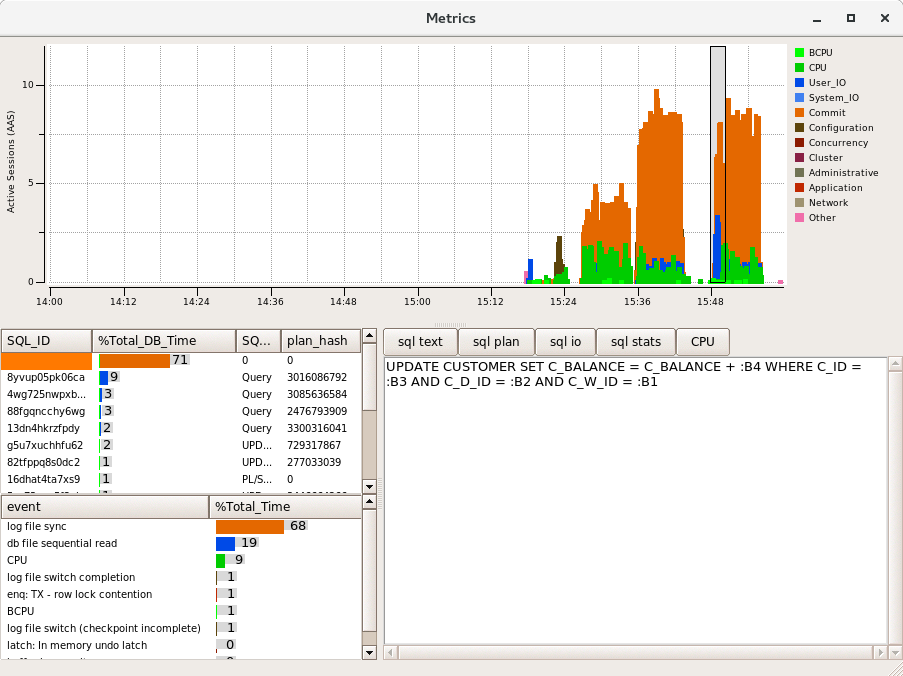

What can be seen fairly quickly is that the dominant colour is orange and the majority of database time is spent on “log file sync”, waiting for these synchronous writes to the redo log. As the activity is increased with the 2nd run performance is not improved, instead the database is spending more time waiting for the redo log.

To illustrate the data reads on Oracle we can flush the buffer cache.

SQL> alter system flush buffer_cache;

System altered.


Re-running the same workload we can now see some blue read activity of “db file sequential read” from index reads at the start of the test, Once our data is buffered this read activity is then diminished as the data in memory is sufficient to sustain the workload that is being run by the rate that it is constrained by “log file sync”.

In this scenario the total throughput is considerably lower than the full potential of the system., so what are  your options?

Making Logging asynchronous

Clearly the most obvious option is to upgrade your log disk I/O capabilities to be able to sustain writes at the level that the test can produce and if running on a production system, this (and investigating your log size and configuration such as using the right disk sector size is the way to go). However what if in a test environment you cannot upgrade the log I/O but want to move beyond the log bottleneck to be able to test other system components more fully.  Fortunately all of the database supported by HammerDB include an option to make the logging asynchronous. In other words we will put our changes in the log buffer, issue a commit but not wait until this is confirmed. Instead we will continue under the assumption that the log write eventually made it to disk.  in this scenario it is possible that in the event of a failure data can be lost but for testing purposes it means we can potentially drive much higher levels of throughput than our log disk can typically sustain, showing the system potential if there were a better performing log configuration. Note however that this is not a solution that will make all log related waits disappear. As noted logging also involves CPU and memory and you will still need to make sure all writes reach the disk, the difference is that you are not flushing to disk synchronously on each commit and therefore are aiming to improve throughput by removing this dependency.

Oracle commit_wait and commit_logging

for Oracle the key parameter is commit_wait. By setting this parameter to NOWAIT the session will not wait for the write to be complete, instead continuing its work once the write has been issued.  This can be complemented by the parameter commit_logging being set to BATCH which groups the individual writes to be written in larger writes.

commit_logging BATCH
commit_wait NOWAIT

These parameters can be set as follows:

SQL> alter system set commit_logging='BATCH' scope=spfile;

System altered.

SQL> alter system set commit_wait='NOWAIT' scope=spfile;

System altered.

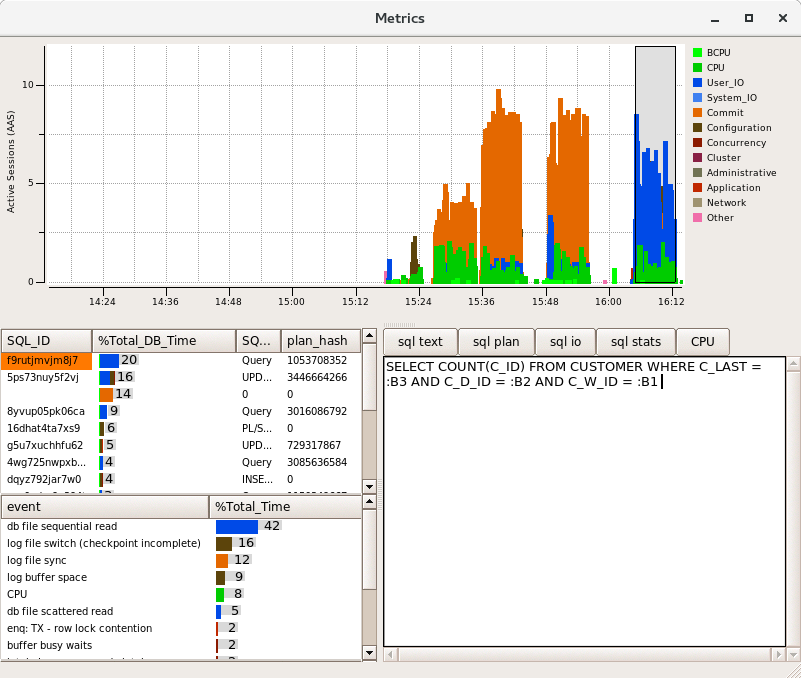

Having set these parameters and re-run the previous test it can be seen that the wait events are now very different. In particular log file sync as intended has reduced considerably and been replaced by “db file sequential read” as the top event. Why is this the case? Because we have removed the log sync bottleneck we have now increased the throughput and put emphasis on the amount of data in the buffer that is being read-in and written-out at a much greater rate. Consequently we now need to increase the buffer cache in size if we are to see more CPU activity.  A good example of how tuning is an iterative process.

Checkpoint not complete

in the previous diagram we can also see the wait event log file switch (checkpoint incomplete). Returning to the first illustration it was shown that data will be periodically written to disk, at a checkpoint all of the data on disk is up to date with the same point in the log.  In this example with the default log configuration of 2 redo logs the database is attempting to switch from one log to the other however the checkpoint operation flushing the data from memory to the data disk has not yet caught up with the previous log and to begin writing to it would overwrite changes on the redo log that correspond to this not yet written yet, consequently the database will wait until this operation has been completed.

Thread 1 advanced to log sequence 1402 (LGWR switch)
  Current log# 1 seq# 1402 mem# 0: /home/oracle/app/oracle/oradata/VULCDB1/onlinelog/o1_mf_1_fjj87ghr_.log
Thread 1 cannot allocate new log, sequence 1403
Checkpoint not complete
  Current log# 1 seq# 1402 mem# 0: /home/oracle/app/oracle/oradata/VULCDB1/onlinelog/o1_mf_1_fjj87ghr_.log
Thread 1 advanced to log sequence 1403 (LGWR switch)
  Current log# 2 seq# 1403 mem# 0: /home/oracle/app/oracle/oradata/VULCDB1/onlinelog/o1_mf_2_fjj87gjj_.log

As can be seen this has happened on a consumer PC configuration with the default redo configuration, therefore for higher throughput also ensure that you resize the logs accordingly.


For SQL Server the equivalent parameter for asynchronous logging is set as follows for the parameter DELAYED_DURABILITY

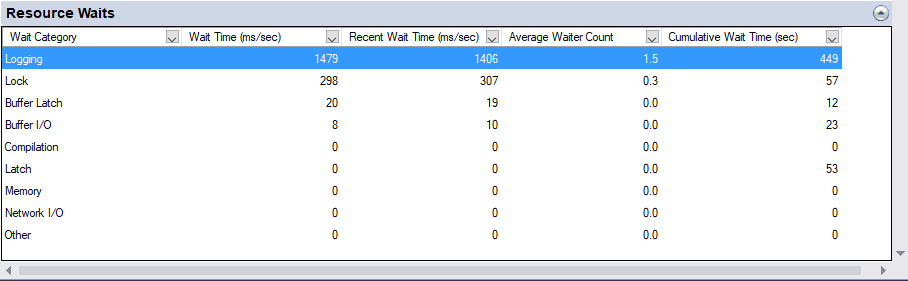

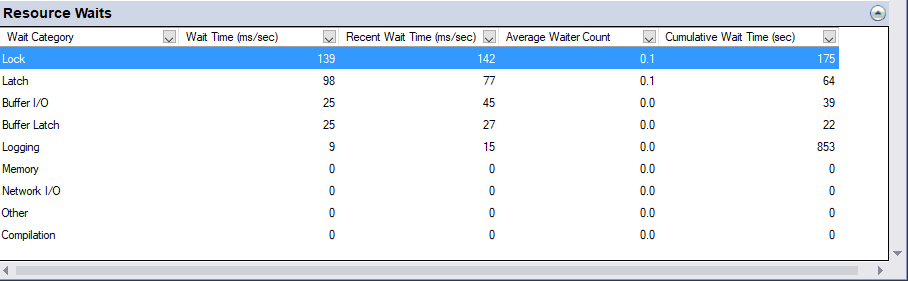

On the same test system it can be seen that without setting this parameter, Logging is shown as the top resource wait.

After setting ALTER DATABASE TPCC SET DELAYED_DURABILITY = FORCED  it can be seen that the waits on logging are reduced.


For MySQL the dependency is at the storage engine level and in this case for the InnoDB storage engine the parameter is self-explanatory.


Similarly for PostgreSQL logging can be set by setting synchronous_commit to off.

synchronous_commit = off                # synchronization

This post aims to address what is the most common scenario for someone running HammerDB TPC-C OLTP workloads for the first time when seeing waits on logging disks and what parameters can be set in a test based environment to achieve more throughput and observe what performance potentially could be achieved without a log disk bottleneck.
